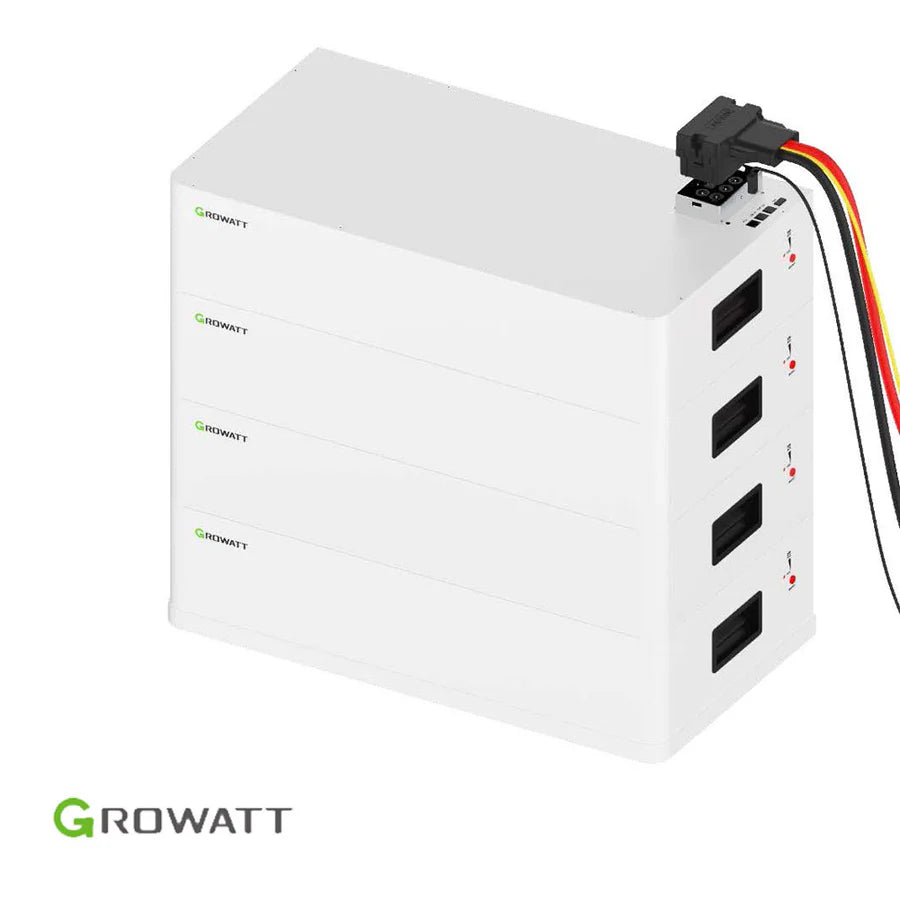

Growatt - Lithium Battery AXE 5.0L-C1

The Growatt AXE 5.0L-C1 lithium battery is a modular energy storage solution, designed to allow for easy capacity expansion. This way, you can increase storage capacity according to your needs.

The AXE series offers Plug & Play installation with the brand's own inverters using the appropriate cable kit.

Main Technical Specifications

• Battery Type: Lithium Iron Phosphate (LiFePO4)
• Nominal Voltage: 51.2 V
• Energy Capacity: 5.0 kWh (with 4.6 kWh usable energy)
• Cycle Life: 6000 cycles (at 0.5C, 80% DOD, 25 °C)
• Depth of Discharge (DoD): 92%
• Scalability: Maximum of 80 units in parallel (up to 400 kWh)
• Communication: CAN / RS485
• Charge Temperature: 0°C to 50°C
• Discharge Temperature: 0°C to 50°C
• Protection Rating: IP20

Datasheet: download

Manual: download

Compatible inverters: download
